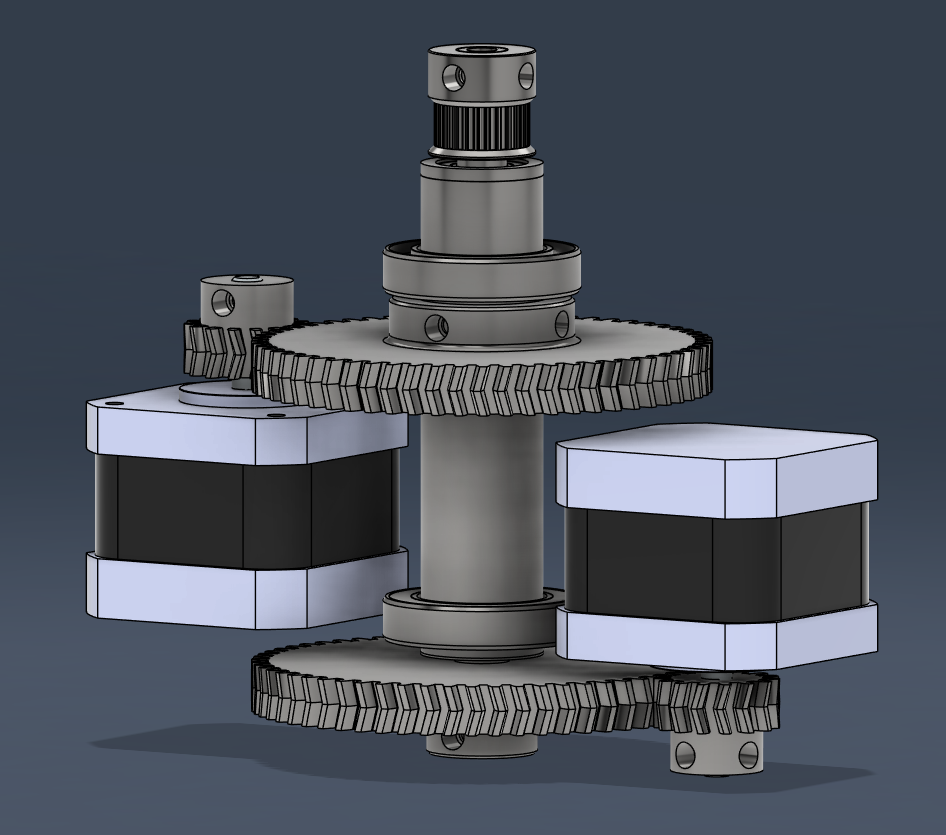

Radial Sandtable Design
Gear Spacing Calculations
Let’s crunch the numbers with a 1.2 mm pitch and gears of 15 teeth and 60 teeth.
⚙️ Step-by-step Calculation
- Pitch Diameter of Gear 1 = 15 teeth × 1.2 mm = 18 mm
- Pitch Diameter of Gear 2 = 60 teeth × 1.2 mm = 72 mm
Centre distance
Centre Distance =1/2 × (18 + 72) = 1/2 × 90 = 45mm
✅ Final Answer: Centre spacing = 45 mm
