The aim of this project is to build on the work of others that already exist, to learn some and dabble in new things and combine that with 3D printing and 3D design, electronics and controls.

So the idea is to build a MMU for my creality K1 Max and document the journey here. I considered simply upgrading to a K2 or to go the K1 upgrade route, but it's costing a lot, I am not convinced the costs justifies the use of my printers and in doing this project, I have a fun project to work on, tinker with Klipper that I have very little experience of apart from rooting my K1 Max. Also having built the sandtable project using a PI Pico 2040, I thought it might be fun to use the stock I have and repeat the process of fitting the technical lego together.

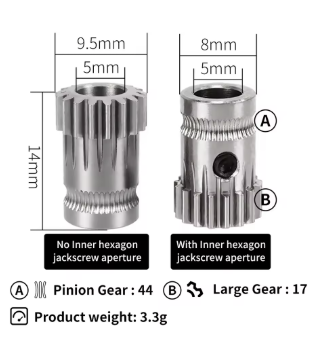

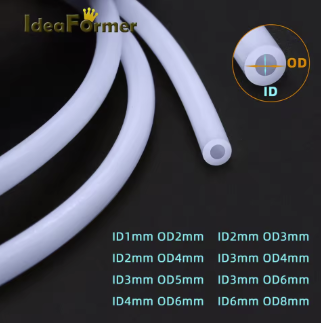

After some research and many articles later, I decided to try out the LH-Stinger Pico MMU. It is well documented and so many options that it becomes quite overwhelming, but I believe that it can be integrated with a rooted K1 Max is reasonable fashion, with the caveat that I want to explore using the Raspberry Pi Pico 2040 as a controller instead.

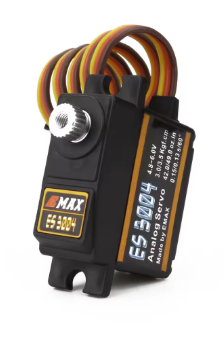

The theory is that you can flash a RPI Pico 2040 with Klipper and once that is achieved you simply define the IO pins for stepper and servo control in Klipper scrips.

• Install Klipper on a PC
• Create a Configuration
• Build the configuration
• Flash the binary to the Raspberry PI Pico 2040
• Connect the board to the main host application

git clone https://github.com/Klipper3d/klipper
cd klipper
make menuconfig

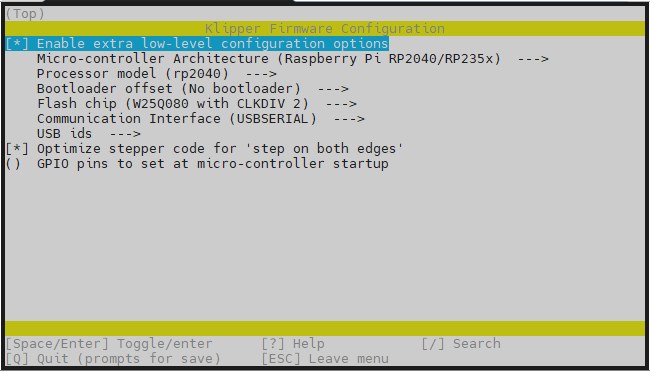

Make Menuconfig brings up this application to easily chose and select options from.

For my test I chose the options as shown above.

The documentation I could find states the following:

jattie@Jattie-PC:~/klipper$ make
  Building out/autoconf.h
  Compiling out/src/sched.o
make: arm-none-eabi-gcc: No such file or directory
make: *** [Makefile:65: out/src/sched.o] Error 127

This is resolved by installing the missing tools

jattie@Jattie-PC:~/klipper$ sudo apt update
sudo apt install gcc-arm-none-eabi binutils-arm-none-eabi libnewlib-arm-none-eabi

Build then runs to completion as expected.

jattie@Jattie-PC:~/klipper$ make
  Compiling out/src/sched.o
  Compiling out/src/command.o
  Compiling out/src/basecmd.o
  Compiling out/src/debugcmds.o
  Compiling out/src/initial_pins.o
  Compiling out/src/gpiocmds.o
  Compiling out/src/stepper.o
  Compiling out/src/endstop.o
  Compiling out/src/trsync.o
  Compiling out/src/adccmds.o
  Compiling out/src/spicmds.o
  Compiling out/src/i2ccmds.o
  Compiling out/src/pwmcmds.o
  Compiling out/src/buttons.o
  Compiling out/src/tmcuart.o
  Compiling out/src/neopixel.o
  Compiling out/src/pulse_counter.o
  Compiling out/src/lcd_st7920.o
  Compiling out/src/lcd_hd44780.o
  Compiling out/src/spi_software.o
  Compiling out/src/i2c_software.o
  Compiling out/src/thermocouple.o
  Compiling out/src/sensor_adxl345.o
  Compiling out/src/sensor_lis2dw.o
  Compiling out/src/sensor_mpu9250.o
  Compiling out/src/sensor_icm20948.o
  Compiling out/src/sensor_hx71x.o
  Compiling out/src/sensor_ads1220.o
  Compiling out/src/sensor_ldc1612.o
  Compiling out/src/sensor_angle.o
  Compiling out/src/sensor_bulk.o
  Compiling out/src/sos_filter.o
  Compiling out/src/load_cell_probe.o
  Compiling out/src/rp2040/main.o
  Compiling out/src/rp2040/watchdog.o
  Compiling out/src/rp2040/gpio.o
  Compiling out/src/rp2040/adc.o
  Compiling out/src/generic/armcm_boot.o
  Compiling out/src/generic/armcm_irq.o
  Compiling out/src/generic/armcm_reset.o
  Compiling out/src/generic/crc16_ccitt.o
  Compiling out/src/rp2040/timer.o
  Compiling out/src/generic/timer_irq.o
  Compiling out/src/rp2040/bootrom.o
  Compiling out/src/rp2040/usbserial.o
  Compiling out/src/generic/usb_cdc.o
  Compiling out/src/rp2040/chipid.o
  Compiling out/src/rp2040/hard_pwm.o
  Compiling out/src/rp2040/spi.o
  Compiling out/src/rp2040/i2c.o
  Building out/compile_time_request.o
Version: v0.13.0-213-gd34d3b05b
  Building rp2040 stage2 out/stage2.o
  Preprocessing out/src/rp2040/rpxxxx_link.ld
  Linking out/klipper.elf
  Building out/lib/elf2uf2/elf2uf2
  Creating uf2 file out/klipper.uf2

• Plug the Pico into your computer while holding the BOOTSEL button, it will mount as a USB drive.
• Copy klipper.uf2 to the Pico drive, it will reboot automatically.

• Plug the flashed pico into K1 Max USB Port
• Establish an SSH connection to the K1 Max and found the new serial device.

root@creality /root [#] ls /dev/serial/by-id/
usb-Klipper_rp2040_E66058388361172C-if00
root@creality /root [#]

We seem to have a successful Klipper installation on the Pico 2040.

[mcu pico_2040_mmu]
serial: /dev/serial/by-id/usb-Klipper_rp2040_E66058388361172C-if00

[output_pin pico_led]
pin: pico_2040_mmu:gpio25
pwm: False
shutdown_value: 0

Adding the config and restarting Klipper however yield this error:

MCU Protocol error

This type of error is frequently caused by running an older
version of the firmware on the micro-controller (fix by
recompiling and flashing the firmware).

Your Klipper version is: 09faed31-dirty
MCU(s) which should be updated:
mcu: Current version 1.3.0.40-5-g6977eaff-dirty-20230711_100121-ubuntu
nozzle_mcu: Current version 1.3.0.40-5-g6977eaff-dirty-20230711_100254-ubuntu
leveling_mcu: Current version 1.3.0.40-5-g6977eaff-dirty-20230711_095416-ubuntu
Up-to-date MCU(s):


Once the underlying issue is corrected, use the "RESTART"
command to reload the config and restart the host software.

mcu 'pico_2040_mmu': Multi-byte msgtag not supported
